This 100-300mm HDPE Double Wall Corrugated Pipe Extrusion Machine / DWC Pipe machine is equipped of two set single screw extruders, double layer structure extrusion die head, corrugated pipe forming machine, water cooling tank, cutting machine and DWC pipe stacker. The double wall corrugated pipe / DWC pipe has features of corrosion resistance, wear resistance, high strength, less weight, flexibility, etc. It is used for various purposes such as building rainwater pipes, underground drainage pipes, sewage pipes, ventilation pipes, and fiber optic cable protection.
Sunrise Machinery absorbs international advanced technology and independent research to manufacture the HDPE double wall corrugated pipe extrusion making machine. We have been committed to the research, continuous development and innovation of corrugated pipe making machines. Sunrise can design and make the corrugated pipe production lines and solid wall pipe machines according to customers' requirement.
This model 100-300mm HDPE double wall corrugated pipe extrusion machine / DWC pipe machine could produce 100mm, 160mm, 200mm, 300mm double wall corrugated pipes. The two set high efficient single screw extruder is SJ75/33 with 90KW main motor and SJ65/33 with 55KW main motor for high output. We also have UPS for the corrugated pipe forming machine. This design is to prevent power cut off. The UPS will drive the corrugated pipe forming machine continuous working for couple of minutes to push the pipe out of the machine, so it will not stick to the calibration molds.
Welcome to contact us if you are interested in this DWC pipe machine. We could supply from 50mm up to 600mm DWC pipe machines.
HDPE Double Wall Corrugated Pipe Machine Models:
|
Model |
Pipe diameter |
Extruder model |
Motor power |
|
DWC-110 |
50-110mm |
SJ65/33 + SJ65/30 |
45KW + 30KW |
|
DWC-160 |
75-160mm |
SJ65/33 + SJ65/30 |
55KW+ 37KW |
|
DWC-315 |
110-315mm |
SJ75/33 + SJ65/33 |
90KW+ 55KW |
|
DWC-500 |
200-500mm |
SJ90/33 + SJ75/33 |
132KW + 75KW |
|
DWC-600 (High Speed Line) |
300-600mm |
SJ120/33 + SJ90/33 |
160KW+132KW |
Detailed Pictures:

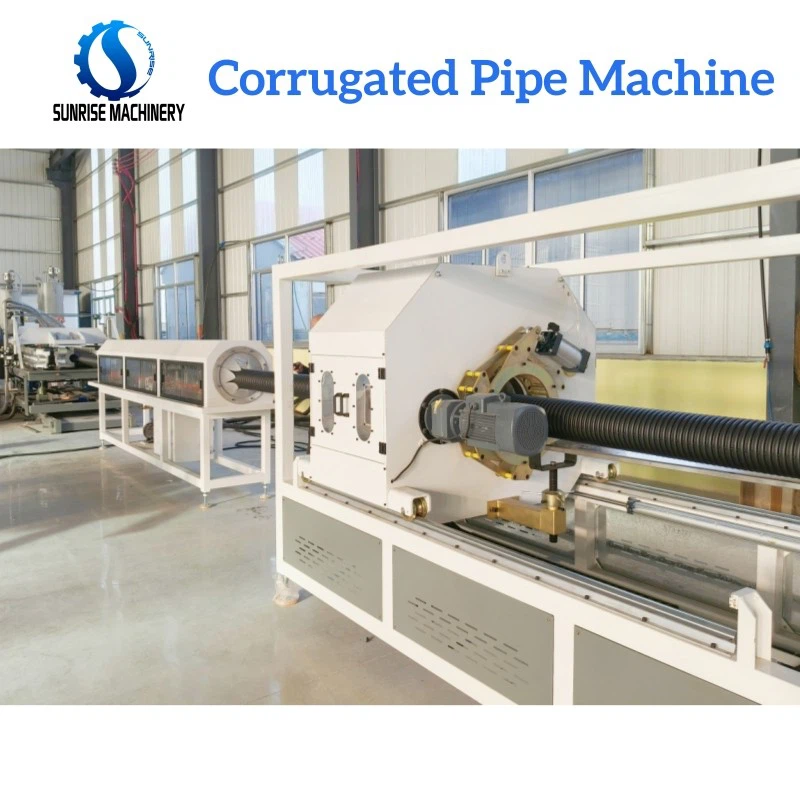

DWC Corrugated Pipe Machine
Welcome to contact us for more details. Sunrise Machinery will be a reliable partner for you.
