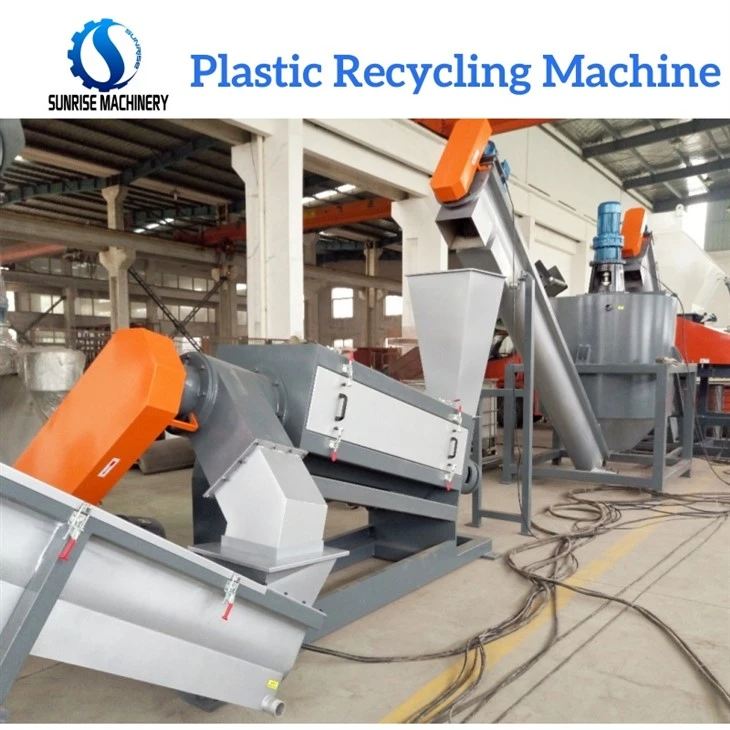

PET Bottle Washing Line

The complete washing plastic PET bottles recycling crushing washing line working flow as below:

Bale breaker →Bottle conveyer→ Label remover → Belt conveyor → Crusher → Screw conveyer→ Washing tank → Screw feeder → Hot washer → (High-speed friction washing machine) → Screw feeder → Washing tank→ Horizontal washer → Screw conveyer→ Dewatering machine → drying system → cyclone silo → Finished product packing

Sunrise Machinery developed this waste plastic PET bottle recycling washing line with international advanced technology, this washing line is good for recycling of highly contaminated PET-bottles into very clean PET flakes (Bottle-to-Bottle quality).

The final products are clean PET bottle flakes, which is suitable for producing PET fiber, PET sheet, PET bottles and PET packing straps, etc. The PET flakes could be sold at the material market as raw material or for self-use.

1. Through washing several times, the soil and sand can be removed, and PE label and PVC label can be separated.
2. Manual selecting can get rid of bottles of different material, label scrap, metal and other rubbish; this offers a safe way to go on the next procedures.
3. Specially designed crusher for PET bottles, smooth feeding, low energy consumption and low noise, high output. Strong structure, low maintenance cost with long working life. Crusher with water also helps to clean the bottles and reduce PET scraps so that the using life of blades can be saved a lot.
4. Float washing, hot washing, friction washing aims to the finally purify of bottles. Labels, caps, glue and other dirty things can be removed.
5. Centrifuge dewatering machine with high-speed rotating, the centrifuge power will remove water from the PET flakes. Air label separator device could further remove PVC labels.

Label remover

PET bottle crusher

Hot washing tank

Hot washing tank

Float Washing Tanks

High Speed Washing Tank

Centrifuge Dewatering Machine

Air Label Separator

Control Cabinet

(Siemens PLC and touch screen available)

1. We offer one year guarantee for all of our machines.
2. Engineers available for installation, commissioning and training in customer's factory.
3. 24 hours on line service.
4. After sales service is full life of machine.

Welcome to contact us if you are looking for waste plastic PET bottles recycling washing line. Sunrise Machinery will be a reliable partner for you.
