HDPE Double wall corrugated pipe is a new type of lightweight pipe made from high-density polyethylene. It has the characteristics of light weight, high pressure resistance, good toughness, fast construction, and long service life. Its excellent pipe wall structure design greatly reduces the cost compared to other structural pipes. And due to its convenient and reliable connection, it has been widely used both domestically and internationally. Replace a large number of concrete pipes and cast iron pipes. The main application of the double wall pipes are for water drainage, or liquid material transportation and underground electric cable protection, etc.
Sunrise Machinery absorbs international advanced technology and independent research to manufacture the HDPE double wall corrugated pipe production line.
Our new high-speed HDPE double wall corrugated pipe production line includes two set high efficient single screw extruders, with Simens PLC control, horizontal corrugated calibration machine, with UPS, water cooling tank, cutting machine and pipe stacker.
We supply horizontal type of HDPE double wall corrugated pipe extrusion production machine line from size 50mm to 600mm. Different from the vertical type of corrugated pipe line, the horizontal type of corrugator is much easy in operation and can achieve high production speed. The whole HDPE DWC double wall production line is centralized to be controlled by Siemens PLC control system.
HDPE Double Wall Corrugated (DWC) Pipe Extrusion Machine Models
|
Model |
Pipe diameter |
Extruder model |
Motor power |
|
DWC-110 |
50-110mm |
SJ65/33 + SJ65/30 |
45KW + 30KW |
|
DWC-160 |
75-160mm |
SJ65/33 + SJ65/30 |
55KW+ 37KW |
|
DWC-315 |
110-315mm |
SJ75/33 + SJ65/33 |
90KW+ 55KW |
|
DWC-500 |
200-500mm |
SJ90/33 + SJ75/33 |
132KW + 75KW |
|
DWC-600 (High Speed Line) |
300-600mm |
SJ120/33 + SJ90/33 |
160KW+132KW |

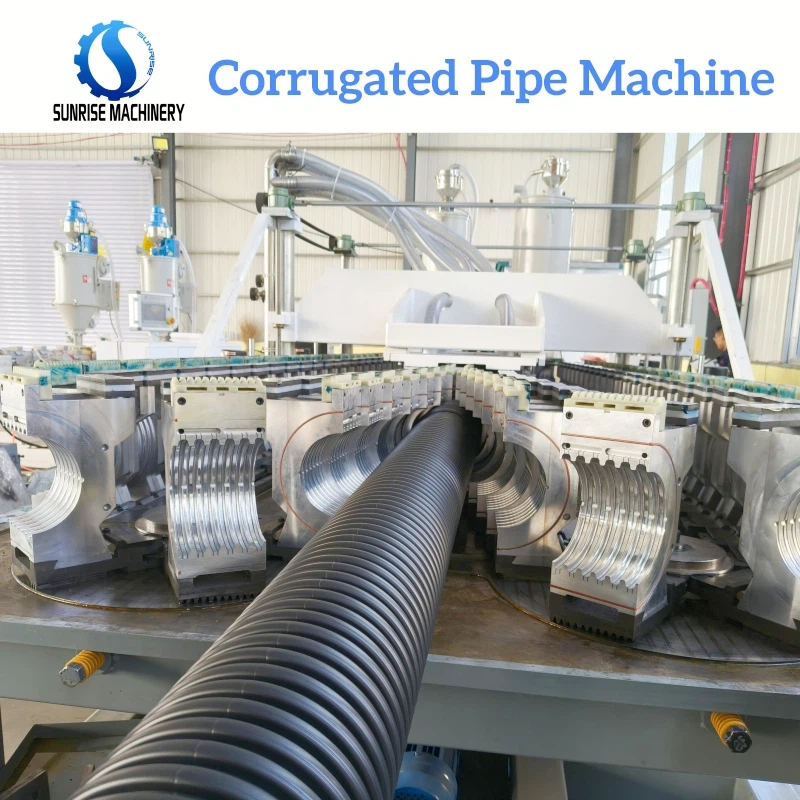

Detailed Machine Pictures of HDPE double wall corrugated pipe extrusion machine line
Dwc Corrugated Calibration Machine
With 20 years' experience, 6000 square meter production base, experienced engineers and technicians, excellent after sales service, Sunrise machinery will be a wise choice for you.
Welcome to contact us if you are interested in this HDPE double wall corrugated pipe extrusion machine line. Please tell the diameters you want to produce; we will prepare the proposal for you ASAP.
