PVC profiles are made of PVC resin with carbon calcium and serious chemical additives. These profiles are widely used in construction, such as window, door, ceiling, wall panel, corner bead, flooring, etc.
The PVC profile production line could produce PVC window profile, door frame, board, ceiling, etc. This machine also could produce wood plastic profile ( WPC).
To produce PVC profile, you shall have high speed mixer to mix PVC powder, CACO3 and other additives according to your formula. Then feed the mixture to the conical twin screw extruder for the production. The mixed material will be extruded through different molds to produce different shape profiles. Then it will be calibrated to keep the shape by vacuum calibration tank, then haul off and cutting. You could cut different length as you want, 4 meter, 6 meter, etc.
To guarantee the quality and good performance of profile production line, we use Beide brand main motor for extruder, and ABB inverter for speed control. The lower voltage electrics components are from Siemens, temperature control device is from Ormon or RKC. Siemens PLC and Siemens touch screen computer is also available.
This PVC profile production line has the features of low energy consumption, high output, easy operation, and less maintenance, etc.
Mechanical Characters
1. Extruder adopts cast-aluminum heating circles, high quality thermo-controllers, air blowers for cooling, AC inverter for speed control.
2. Calibrating tables adopts special cooling system, which can guarantee the effective cooling. The water contacted parts are made of stainless steel SUS304 for long service life.
3. Haul off machine adopts special lifting technology, which works stably with powerful hauling force.
4. Cutting machine works together with extrusion line synchronously, installed with length-setting unit, which can guarantee high speed cutting, uniform length of cutting.

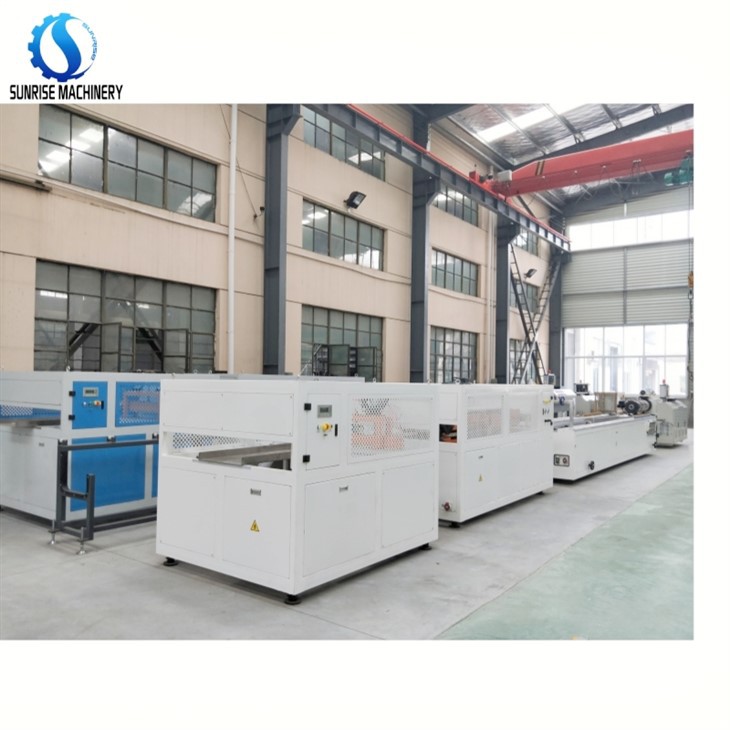

Detailed Picture of the PVC Profile Extrusion Production Machine Line
Conical Twin Screw Extruder
Vacuum Calibration Tank
Haul Off And Cutter
High Speed Mixer
We could supply not only the PVC profile production line, but also the complete solution, like PVC mixer, auto weighing, mixing, feeding system, PVC profile crusher and pulverizer, etc.
Our Customers
Ship To Customers
Production Facilites
With more than 20 years' experience and 6000mm square meter production base, skilled technicians, Sunrise machinery could deliver the PVC profile production machines with high quality in shortest time.
Welcome to contact us for more details.
